Boeing 737-800-3
General Arrangement
Benefit Charts
Fuel Savings
Winglets Offer Substantial Fuel Savings
Payload-Range Curve
Winglets Increase Payload-Range Capability
Weight Impact
Winglet Installation Weight Impact
| Component | Delta Weight | |
| LB/AP | KG/AP | |
| Wing Mod | 100.6 | 45.6 |
| Ballast Weight | 126.0 | 57.1 |
| Winglet – Lower Blade | 49.5 | 22.5 |
| Winglet Mod | 17.9 | 8.1 |
| Total per Airplane | 294.0 | 133.4 |

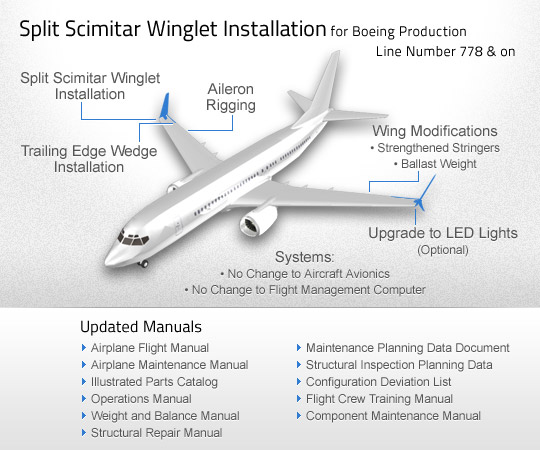

System Description
