Certified & In-Service
Boeing 737-900

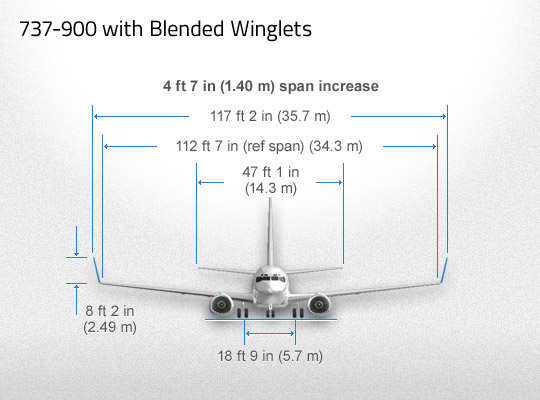

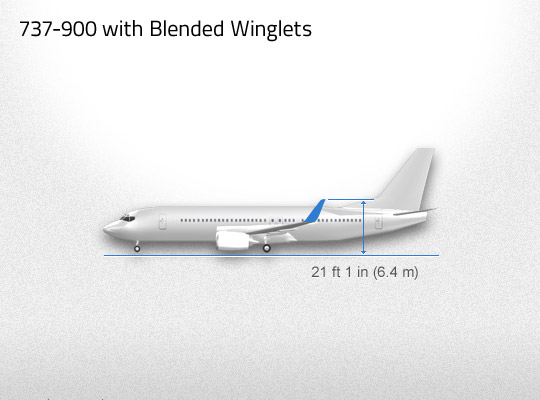

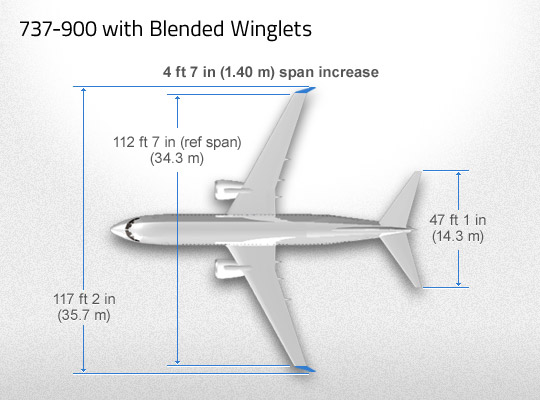

General Arrangement
Benefit Charts
Fuel Savings
Winglets Offer Substantial Fuel Savings
Payload-Range Curve
Winglets Increase Payload-Range Capability for 737-900s
Improved Take-Off Performance
Winglets Improve Take-Off Performance
Information Coming Soon
Weight Impact
Winglet Installation Weight Impact
| Retrofit | Production | |
| 737-900 | +390 lbs (131 kgs) |
N/A |

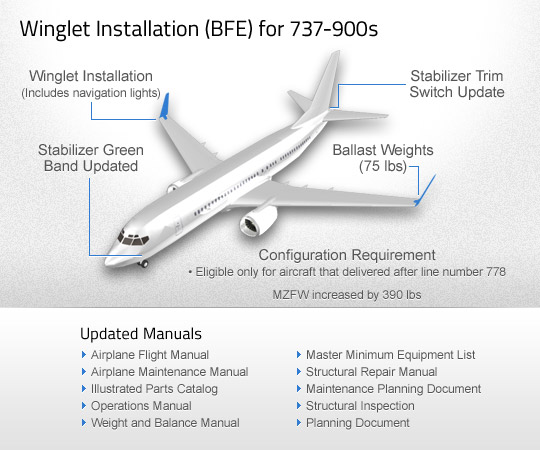

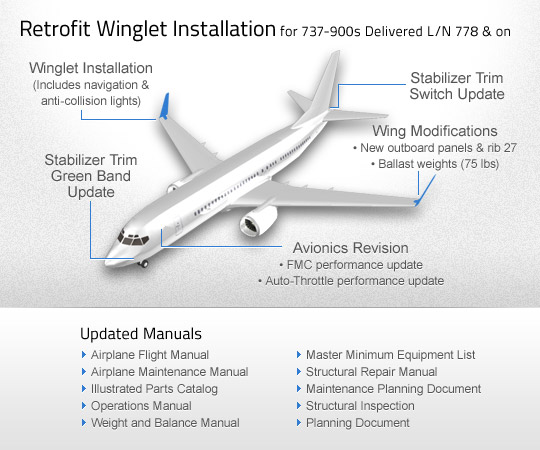

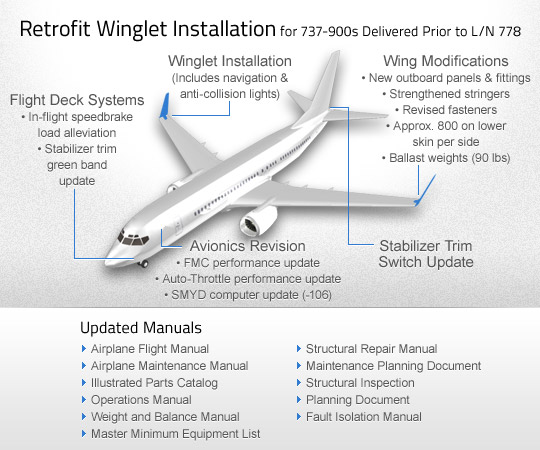

System Description
Proven Benefits
- Lower Block Fuel
- Reduced Engine Maintenance Costs
- Improved Takeoff Performance
- Increased Payload-Range Capacity
- Lower Emissions
- Reduced Airport Community Noise
- Higher Initial/Optimal Cruise Altitudes
- More Economical Dash Speed Capacity
- Lower Landing & Navigation Fees
- Dramatically Different Appearance
- Higher Aircraft Residual Value
Installation Downtime
For more information about installation downtime, please view the Retrofit page for more details.
