Boeing 737-700 SSW

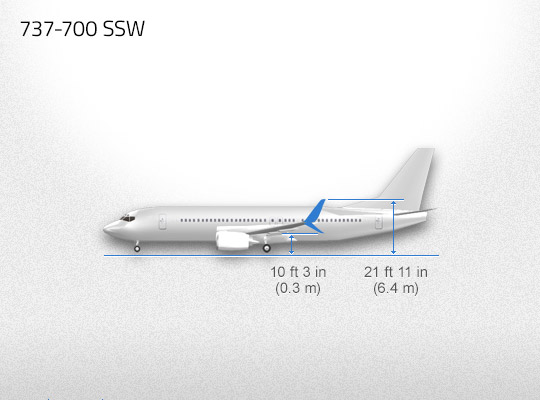

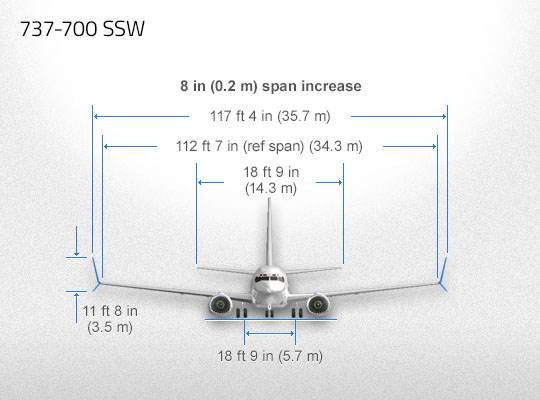

General Arrangement
Benefit Charts
Fuel Savings
Winglets Offer Substantial Fuel Savings
Payload-Range Curve
Winglets Increase Payload-Range Capability
Weight Impact
Winglet Installation Weight Impact
| 737-700-5 Kit 737-700 SSW Line Number: pre 1545 |
||
| Component | Delta Weight | |
| LB/AP | KG/AP | |
| Wing Mod | 61.4 | 27.9 |
| Ballast Weight | N/A | N/A |
| Winglet Mod | 17.6 | 8.0 |
| Vental Strake | 49.8 | 22.6 |
| Total per Airplane | 128.8 | 58.4 |
| 737-700-5 Kit 737-700 SSW Line Number: 1545 and on |
||
| Component | Delta Weight | |
| LB/AP | KG/AP | |
| Wing Mod | 61.2 | 27.8 |
| Ballast Weight | N/A | N/A |
| Winglet Mod | 17.6 | 8.0 |
| Vental Strake | 49.8 | 22.6 |
| Total per Airplane | 128.6 | 58.3 |
System Description
